Introduction:

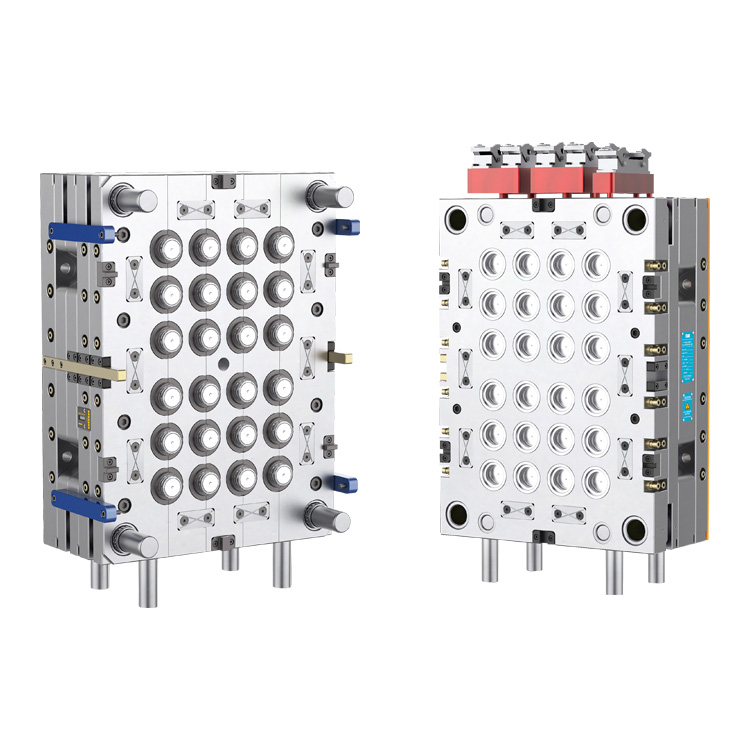

In the intricate world of injection molding, the construction of molds is a critical aspect that significantly influences the quality, efficiency, and durability of the produced components. A 24-cavity 38mm cap mold, designed for high-volume production, demands careful consideration of materials to ensure precision and longevity. This blog explores the common materials used in the construction of these molds and their impact on the molding process.
1. Steel Alloys:
Steel alloys are a primary choice for constructing the core and cavity inserts of a 24-cavity 38mm cap mold. Common alloys include P20, H13, and stainless steel. These materials offer excellent hardness, wear resistance, and thermal conductivity, ensuring the mold's ability to withstand repeated molding cycles.
2. Aluminum Alloys:
Aluminum alloys may be utilized for mold bases and certain components where weight reduction is a priority. While not as hard as steel, aluminum alloys offer good thermal conductivity, aiding in effective heat dissipation during the molding process.
3. Tool Steel:
Tool steels, such as D2 or A2, are often chosen for components that require high wear resistance. These materials contribute to the durability of the mold, especially in areas subjected to significant friction or abrasion.
4. Beryllium Copper:
Beryllium copper is renowned for its exceptional thermal conductivity and corrosion resistance. This material is commonly used for mold components that require efficient heat dissipation, contributing to uniform cooling and preventing issues like warping or uneven shrinkage.
5. Mold Bases:
Mold bases, the foundation of the mold assembly, are typically made from steel or aluminum alloys. The choice depends on factors like cost, weight considerations, and the required level of durability. Steel mold bases are common for high-production molds, offering stability and rigidity.
6. Hard Coatings:
To enhance wear resistance and extend the life of mold components, hard coatings like titanium nitride (TiN) or chromium nitride (CrN) may be applied. These coatings protect against abrasion and improve the release properties of the mold.
7. Nickel Alloys:
Nickel alloys, such as Inconel or Hastelloy, are corrosion-resistant materials that may be employed in molds intended for molding corrosive materials or in environments with aggressive processing conditions.
8. Thermally Conductive Materials:
Components requiring efficient heat transfer often utilize thermally conductive materials, such as copper alloys. These materials aid in maintaining uniform temperatures across the mold, reducing the risk of defects in the molded caps.
Conclusion:
The construction of a 24-cavity 38mm cap mold demands a careful selection of materials to ensure durability, precision, and efficiency in high-volume production. The combination of steel alloys, aluminum alloys, tool steels, and specialized materials like beryllium copper creates a harmonious blend that addresses the unique challenges of injection molding. As technology advances, continuous innovations in mold material selection contribute to the evolution of injection molding processes, ensuring the production of high-quality caps for diverse applications.
