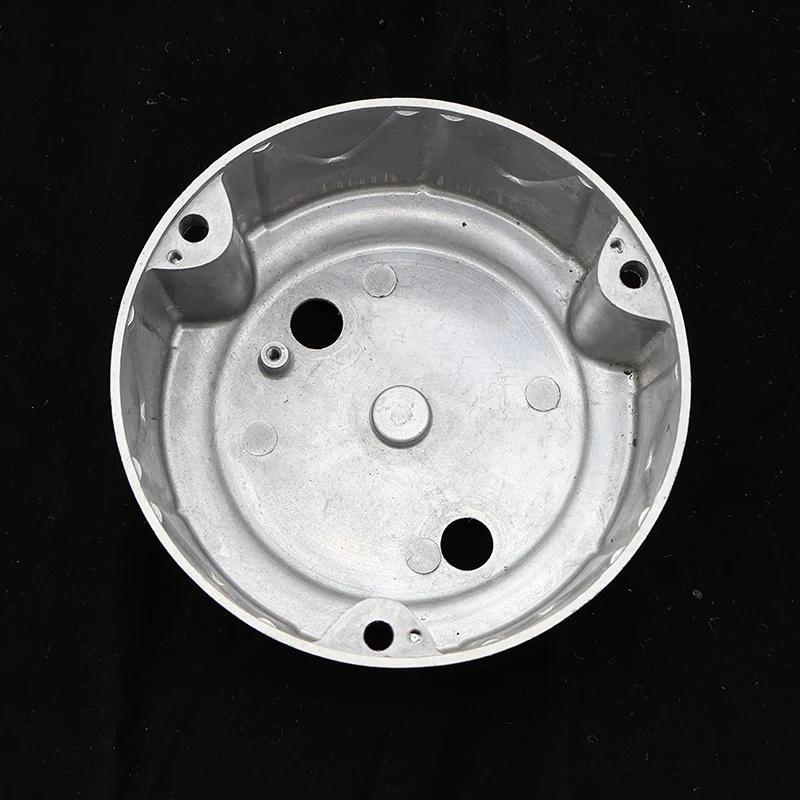

How to equip Die Castings of Lighting Fixtures

Equipping die castings of lighting fixtures involves a process of integrating the cast parts into functional lighting assemblies. Die castings are typically used for their strength, heat resistance, and ability to be formed into complex shapes. Here’s a step-by-step guide on how to equip them:

1. Inspect the Die Casting

Check for defects: Look for cracks, burrs, incomplete fills, or warping.

Verify dimensions: Ensure the casting matches the design specifications using calipers or gauges.

2. Surface Preparation

Deburring: Remove any sharp edges or flash from the casting.

Cleaning: Use sandblasting, ultrasonic cleaning, or solvent degreasing to remove oils and residues.

Coating (if needed): Apply powder coating or anodizing for corrosion resistance or aesthetics.

3. Machining (if required)

Drilling or tapping holes: For mounting or wiring.

Milling or CNC work: To ensure fitment with other components like lenses, LED boards, or heat sinks.

4. Assembly Preparation

Install inserts: Threaded inserts or bushings may be added for screws or wire connections.

Seal testing: Ensure gaskets or seal surfaces are smooth if the fixture requires IP-rated sealing.

5. Electrical Component Integration

Install LEDs or sockets: Use thermal paste and screws or clips to mount them.

Wire harnessing: Route and secure wires for power, ground, and control.

Add drivers or transformers: These may be mounted internally or externally depending on the design.

6. Mounting Features Installation

Brackets or arms: Attach any required mounting hardware.

Gaskets and seals: Install for water or dust protection (especially in outdoor fixtures).

7. Final Assembly

Lens and diffuser fitting: Use screws, snaps, or silicone sealing.

Enclosure closure: Secure back plates, covers, or housings.

Labeling and marking: Add compliance labels (UL, CE, etc.).

8. Quality Control and Testing

Electrical testing: Confirm power functionality, insulation, and grounding.

IP rating testing: If required, perform water/dust ingress tests.

Light output and heat testing: Verify LED performance and heat dissipation.
