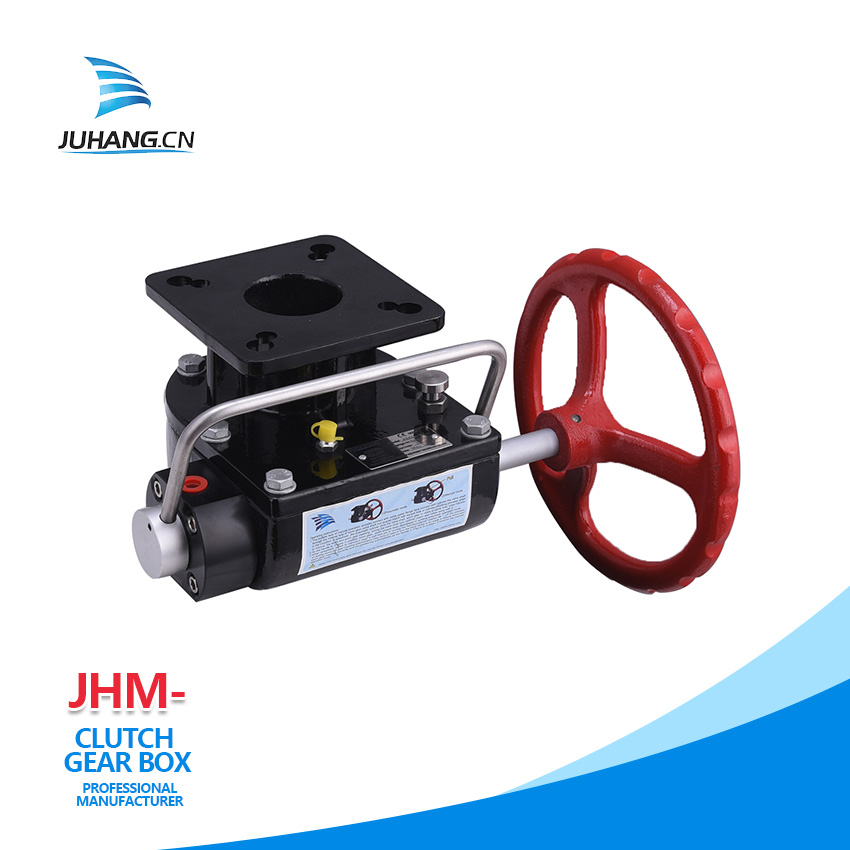

When it comes to industrial automation, choosing the right equipment is crucial for efficiency and reliability. The part-turn clutch type pneumatic actuator is a popular choice for automating quarter-turn valves, but selecting the right model and maintaining it properly can make all the difference.
In this blog, we’ll guide you through the factors to consider when choosing an actuator and share tips on maintaining it for long-term performance.
Factors to Consider When Choosing an Actuator
1. Torque Requirements
The actuator must provide sufficient torque to operate the valve effectively. Determine the valve's operating torque, including additional torque needed for overcoming factors like friction or pressure differentials.
2. Valve Compatibility
Ensure the actuator is compatible with the type of valve you’re automating. Part-turn actuators are ideal for ball, butterfly, and plug valves that require rotational motion.
3. Operating Environment
Consider the environmental conditions where the actuator will be installed. If it will operate in harsh conditions, choose a model with robust materials, corrosion resistance, and temperature tolerance.
4. Manual Override Option
The clutch mechanism is essential for applications where manual control may be required. Ensure the manual override is easy to engage and disengage.
5. Control Options
Modern actuators often include advanced control systems, such as:
- Position Feedback: Limit switches or positioners for real-time monitoring.
- Fail-Safe Mechanisms: Features like spring return to ensure safe operation during power loss.
6. Size and Weight
The actuator should fit the installation space without compromising structural integrity. Compact designs are often preferred for tight spaces.
7. Cost and Maintenance
While upfront costs are important, consider long-term maintenance requirements and total cost of ownership. High-quality actuators may have a higher initial cost but offer better durability and lower maintenance costs.
Tips for Maintaining Your Pneumatic Actuator
1. Regular Inspections
Schedule routine checks to identify wear and tear, air leaks, or alignment issues. Inspect the clutch mechanism to ensure smooth manual operation.
2. Lubrication
Keep moving parts well-lubricated to prevent friction and extend the actuator’s lifespan. Use manufacturer-recommended lubricants for optimal performance.
3. Check Seals and Gaskets
Over time, seals and gaskets can degrade, leading to air leaks. Replace them periodically to maintain efficiency.
4. Monitor Compressed Air Quality
Ensure the air supply is clean and dry. Moisture or contaminants in the air can damage internal components and reduce performance.
5. Test Manual Override
Periodically engage the manual override to ensure the clutch mechanism operates smoothly. This is particularly important for emergency scenarios.
6. Calibration and Alignment
Verify that the actuator’s position indicators and stops are calibrated correctly. Misalignment can lead to improper valve operation.
7. Follow Manufacturer Guidelines
Adhere to the manufacturer’s maintenance schedule and recommendations for spare parts and servicing.
Benefits of Proper Selection and Maintenance
- Improved Reliability: Reduces downtime and ensures consistent valve operation.
- Enhanced Safety: Minimizes risks associated with malfunctioning valves.
- Extended Lifespan: Regular maintenance prevents premature wear and extends the life of the actuator.
- Cost Savings: Proper care reduces the need for costly repairs or replacements.
The part-turn clutch type pneumatic actuator is a critical component in automating industrial processes, offering precise control, flexibility, and durability. By carefully selecting the right actuator for your application and maintaining it effectively, you can optimize performance, improve safety, and reduce operational costs.
