The Production Process and Quality Control of 99.5% Purity Purified Terephthalic Acid

2024-08-14

Introduction

Purified Terephthalic Acid (PTA) with a 99.5% purity level plays a critical role in the manufacturing of polyester and other industrial products. Achieving and maintaining this high level of purity requires a sophisticated production process and stringent quality control measures. In this blog, we will explore the production process of 99.5% Purity PTA and the importance of quality control in ensuring its consistency and performance.


The Production Process of 99.5% Purity PTA

1. Oxidation of Para-Xylene:

  - The production of PTA begins with the oxidation of para-xylene, a hydrocarbon derived from petroleum. In this process, para-xylene is mixed with acetic acid and exposed to air in the presence of a catalyst, typically cobalt-manganese-bromide.

  - This oxidation reaction results in the formation of crude terephthalic acid (CTA), along with water and other by-products. The crude product contains impurities that must be removed to achieve the desired purity level.


2. Purification Process:

  - The crude terephthalic acid undergoes a purification process to remove impurities such as 4-carboxybenzaldehyde (4-CBA) and para-toluic acid. This is typically done through crystallization and hydrogenation.

  - During crystallization, the CTA is dissolved in water or a solvent and then cooled to precipitate the purified crystals of terephthalic acid. The crystals are filtered and washed to remove any remaining impurities.

  - In hydrogenation, the CTA is treated with hydrogen in the presence of a catalyst, which converts the impurities into less harmful substances, further increasing the purity of the PTA.


3. Drying and Packaging:

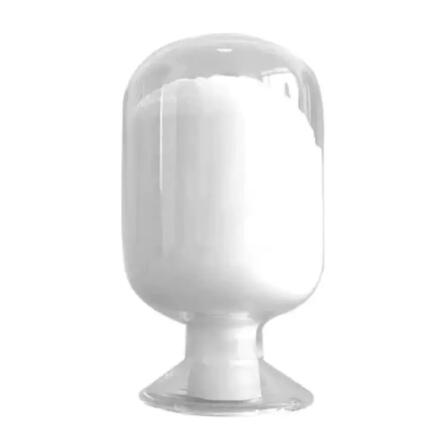

  - After purification, the high-purity PTA is dried to remove any residual moisture. The final product is a white crystalline powder with a purity of 99.5%.

  - The PTA is then packaged in moisture-proof containers to prevent contamination and maintain its quality during storage and transportation.


Quality Control Measures in PTA Production

- Raw Material Quality: The quality of para-xylene used in the production process directly impacts the purity of the final PTA. Ensuring that the raw materials are of high quality and free from contaminants is the first step in achieving a high-purity product.

- Process Monitoring: Throughout the oxidation and purification processes, various parameters such as temperature, pressure, and catalyst concentration are closely monitored and controlled. This ensures that the chemical reactions proceed as expected, minimizing the formation of impurities.

- Testing and Analysis: After each stage of production, samples of the PTA are tested for purity, moisture content, and other critical parameters. Techniques such as high-performance liquid chromatography (HPLC) and gas chromatography (GC) are commonly used to analyze the purity of PTA.

- Compliance with Standards: 99.5% Purity PTA must meet strict industry standards, such as those set by the American Society for Testing and Materials (ASTM). Compliance with these standards ensures that the PTA is suitable for use in high-performance applications.


The Importance of Consistency in PTA Purity

Consistency in the purity of PTA is crucial for industries that rely on it for producing polymers, films, fibers, and other materials. Variations in purity can lead to defects in the final products, affecting their performance, durability, and aesthetic qualities. Therefore, maintaining a consistent 99.5% purity level is essential for meeting the quality expectations of customers and end-users.


Conclusion

The production of 99.5% Purity Purified Terephthalic Acid (PTA) is a complex process that requires precise control and rigorous quality assurance. By understanding the production process and the importance of quality control, manufacturers can ensure that their PTA meets the highest standards of purity and consistency. This, in turn, contributes to the production of high-quality polyester and other industrial products that are essential in various sectors of the economy.
