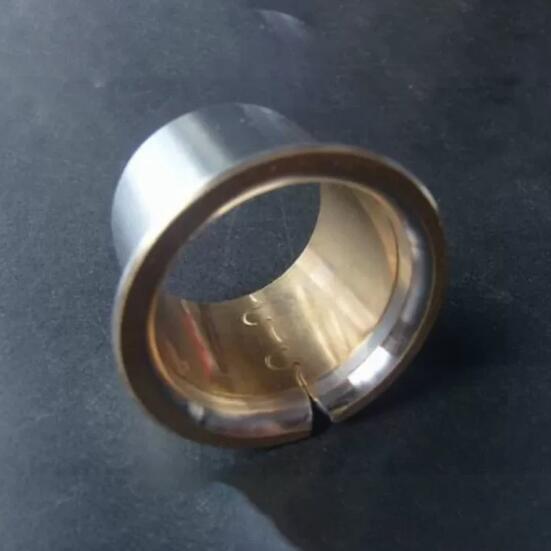

Unveiling the Composition of Main Shaft Bi-Metal CuSn4Pb24 Flange Bearings

2024-03-11

Main shaft bi-metal CuSn4Pb24 flange bearings play a crucial role in various industrial applications, providing reliable support and smooth operation for rotating machinery. Understanding the composition of these bearings is essential for appreciating their performance and durability. In this blog, we'll explore the composition of main shaft bi-metal CuSn4Pb24 flange bearings, shedding light on the materials that make them an indispensable component in mechanical systems.

1. Bi-Metal Construction: Main shaft bi-metal CuSn4Pb24 flange bearings are constructed using a bi-metallic composition, consisting of two distinct layers bonded together. This bi-metal construction combines the beneficial properties of two different materials to achieve optimal performance and reliability.

2. CuSn4Pb24 Layer: The primary layer of the bi-metal bearing is composed of CuSn4Pb24, a bronze alloy renowned for its excellent bearing properties. CuSn4Pb24 is a high-strength, wear-resistant material that provides exceptional durability and load-bearing capacity. This bronze alloy contains copper (Cu), tin (Sn), and lead (Pb) as its main constituents, along with trace elements to enhance its mechanical properties.

3. Copper (Cu): Copper is the primary component of the CuSn4Pb24 alloy, contributing to its strength, conductivity, and corrosion resistance. Copper forms the base matrix of the bronze alloy, providing structural integrity and support for the tin and lead particles.

4. Tin (Sn): Tin is added to the CuSn4Pb24 alloy to improve its wear resistance, lubricity, and anti-seizing properties. Tin particles within the bronze matrix form a solid lubricant layer that reduces friction and wear between the bearing surface and the shaft, ensuring smooth operation and extended service life.

5. Lead (Pb): Lead serves as a lubricant and enhances the machinability of the CuSn4Pb24 alloy. Lead particles dispersed throughout the bronze matrix act as solid lubricants, reducing friction and preventing metal-to-metal contact between the bearing and the shaft. This helps minimize wear and prolong the lifespan of the bearing assembly.

6. Steel Backing Layer: In addition to the CuSn4Pb24 layer, main shaft bi-metal flange bearings feature a steel backing layer. The steel backing provides structural support and rigidity to the bearing, ensuring stability and alignment within the housing or mounting assembly. The steel backing layer also facilitates bonding with the CuSn4Pb24 layer during the manufacturing process, creating a strong and durable bi-metallic bond.

7. Flange Design: Main shaft bi-metal CuSn4Pb24 flange bearings are characterized by their flanged design, which incorporates a flat collar or rim around the outer diameter of the bearing. The flange serves as a retaining feature, preventing axial movement and ensuring proper positioning within the housing or mounting structure. The flange also provides additional support and stability, particularly in applications with radial loads or vibrations.

In conclusion, the composition of main shaft bi-metal CuSn4Pb24 flange bearings combines the superior bearing properties of CuSn4Pb24 bronze alloy with the structural support of a steel backing layer. This bi-metal construction offers exceptional durability, wear resistance, and load-bearing capacity, making these bearings indispensable components in a wide range of industrial machinery and equipment. With their robust construction and reliable performance, main shaft bi-metal CuSn4Pb24 flange bearings continue to play a vital role in ensuring the smooth and efficient operation of mechanical systems across various industries.
