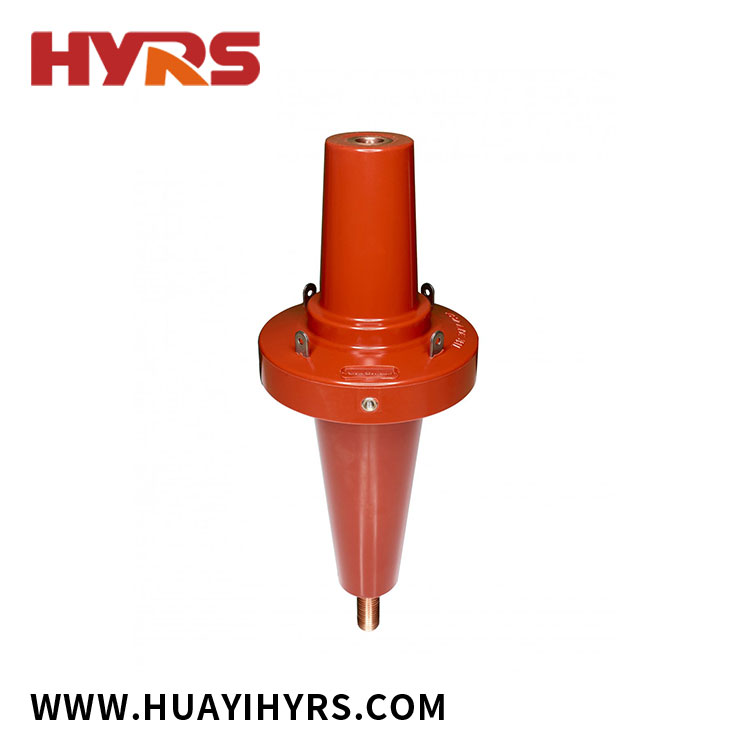

24kV Bushing Holder

2023-10-18

A 24kV bushing holder is a component used in high-voltage electrical systems to provide support and insulation for bushings. Bushings are insulating devices that allow electrical conductors to pass through a grounded barrier, such as a transformer tank or switchgear enclosure, while maintaining electrical isolation.

The 24kV designation refers to the voltage rating of the bushing holder, indicating that it is designed to withstand a maximum voltage of 24 kilovolts (24,000 volts). This voltage rating is commonly used in medium-voltage electrical systems, such as distribution networks and industrial applications.

The bushing holder is typically made of a high-quality insulating material, such as porcelain or composite materials, that can withstand high voltages and provide electrical insulation. It is designed to securely hold the bushing in place and prevent any electrical arcing or flashover between the bushing and the grounded enclosure.

The 24kV bushing holder may feature various mounting options, such as flange mounting or stud mounting, depending on the specific application and installation requirements. It should be installed and connected according to the manufacturer's instructions and relevant electrical standards to ensure safe and reliable operation.

Bushing holders are an essential component in high-voltage electrical systems as they facilitate the safe and reliable passage of electrical conductors through grounded barriers while maintaining proper insulation and electrical isolation. They are commonly used in transformers, switchgear, circuit breakers, and other high-voltage equipment.
