Components of Beams Welding Lines

2023-10-18

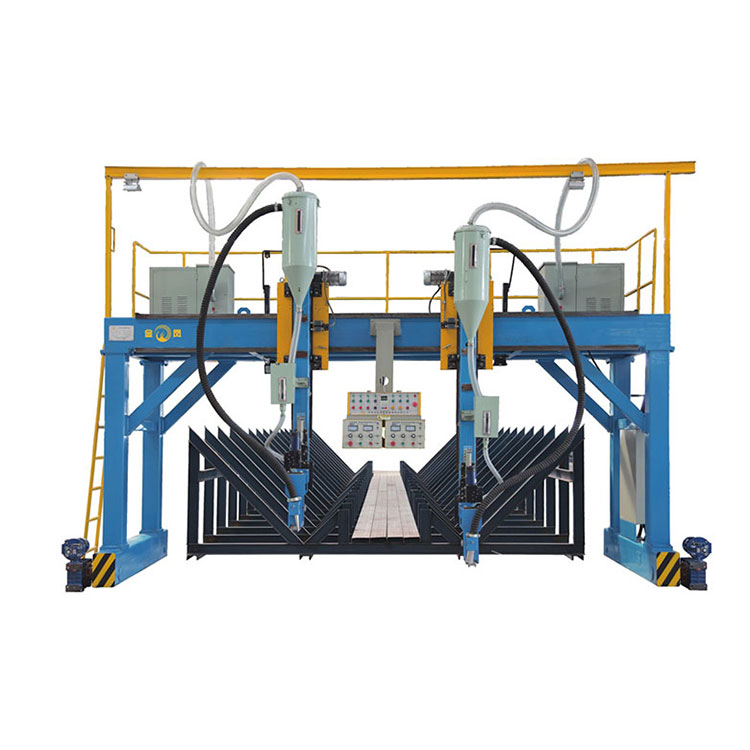

A "Beams Welding Line" typically refers to a manufacturing process where steel beams or other similar structural elements are welded together to create larger structures like bridges, buildings, and more. The process involves several components and steps to ensure proper welding and fabrication. The exact components can vary depending on the specific setup and technology used, but here are some common components you might find in a beams welding line:

1. Input Material Handling:

   - Loading station: Where raw materials, such as steel beams, are placed for processing.

   - Material conveyors: Systems for moving the beams along the welding line.

2. Preparation Station:

   - End preparation: Cutting, notching, or beveling the ends of beams to prepare them for welding.

   - Cleaning: Removing dirt, rust, and contaminants from the surfaces to be welded.

3. Welding Stations:

   - Welding machines: These could include arc welding, MIG (Metal Inert Gas) welding, or other types depending on the application.

   - Welding fixtures: Custom jigs and fixtures designed to hold beams in the correct position for accurate welding.

   - Welding robots or operators: Depending on the level of automation, welding can be done by robotic arms or skilled human welders.

4. Weld Inspection and Quality Control:

   - Non-destructive testing (NDT): Techniques like ultrasonic testing, X-rays, or magnetic particle inspection to check the quality of welds without damaging the material.

   - Visual inspection: Skilled inspectors examine welds for surface defects and other imperfections.

   - Dimensional checks: Ensuring the beams meet the required specifications in terms of size and alignment.

5. Post-Weld Treatment:

   - Cooling and stress relief: Beams might undergo controlled cooling or heat treatment to reduce residual stresses and prevent warping.

   - Grinding and finishing: Removing excess weld material and achieving a smooth surface finish.

6. Output Material Handling:

   - Unloading station: Where finished beams are taken off the welding line.

   - Material conveyors: Systems for moving the finished beams to storage or further processing areas.

7. Data and Process Monitoring:

   - Sensors and cameras: Used to monitor the welding process, detect defects, and ensure quality control.

   - Data logging: Recording process parameters, weld quality data, and other relevant information for analysis and improvement.

8. Safety Systems:

   - Protective barriers and curtains: To ensure the safety of workers and bystanders from welding sparks and radiation.

   - Emergency stops and alarms: In case of any hazardous situations, there should be mechanisms to halt the process and alert personnel.

9. Automation and Control:

   - Programmable Logic Controllers (PLCs) and human-machine interfaces (HMIs): Used to control the entire welding process, monitor equipment status, and make adjustments as needed.

These components work together to create an efficient and controlled process for welding steel beams, ensuring the final product meets the required standards and specifications.
